Specifications
Specification - High Channel :
- INPUTS: Single Gold Plated Binding Posts
- POWER HANDLING: 75W/150W
- ENCLOSURE TYPE: Acoustic Suspension
- FREQUENCY RESPONSE: Conforms to Dolby Atmos Specifications
- HIGH FREQUENCY DRIVER: 1” Aluminum LTS tweeter mated to a 90 x 90 square Tractrix® Horn
- LOW FREQUENCY DRIVER: 5.25” spun-copper IMG woofer
- NOMINAL IMPEDANCE: 8 ohms Compatible
- SENSITIVITY: Conforms to Dolby Atmos Specifications
Specification - Main Channel
- BUILT FROM: 2018
- DEPTH INCHES (MM): 17.3” (439 mm)
- ENCLOSURE TYPE : Bass-Reflex via rear-firing Tractrix®ports
- FINISHES: Black Textured Wood Grain Vinyl
- NOMINAL IMPEDANCE: 8 ohms
- Compatible CROSSOVER FREQUENCY : 2,000 Hz
- ENCLOSURE MATERIAL : MDF
- HEIGHT INCHES (MM): 40” (1017 mm)
- HIGH FREQUENCY DRIVER: 1” Aluminum LTS tweeter mated to a 90 x 90 square Tractrix® Horn
- INCLUDED ACCESSORIES: Injection molded feet & screws
- INPUTS: Single Gold Plated Binding Posts
- LOW FREQUENCY DRIVER: Dual 6.5” spun-copper IMG woofers
- POWER HANDLING (CONT/PEAK): 100W/400W
- PRODUCT WEIGHT LBS (KG): 49 lbs (22.2 kg)
- SENSITIVITY : 96 dB @ 2.83V/1M
- WIDTH INCHES (MM): 9.4” (240 mm)
Specification - Main Channel :
- FREQUENCY RESPONSE: 38Hz - 21kHz +/- 3dB
Description

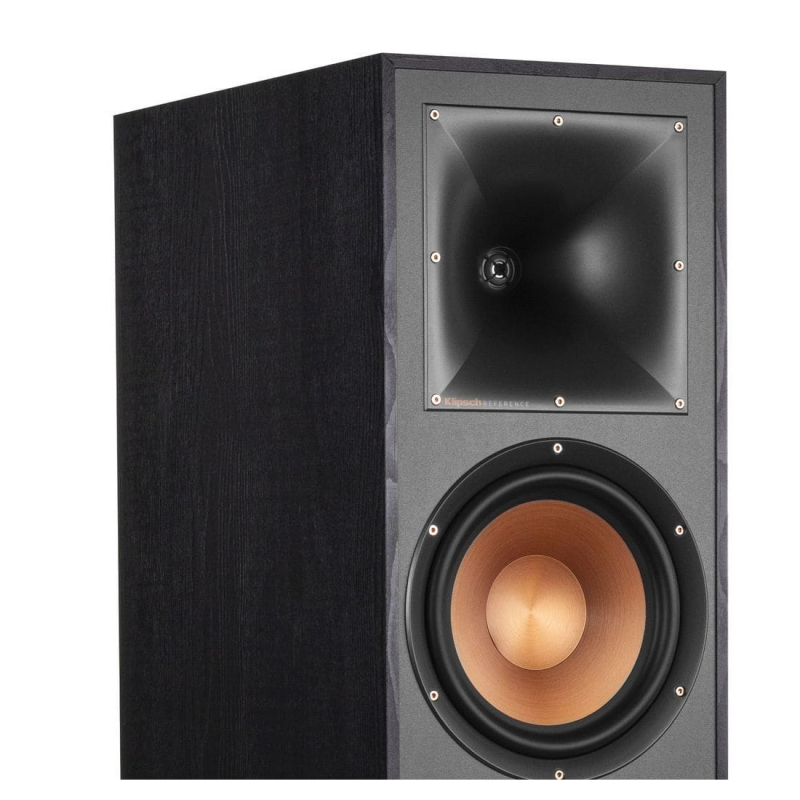

Built with an elevation channel integrated into the top, the R-625FA Dolby Atmos® floorstanding speaker not only delivers stereo sound toward the listener but also reflects sound off the ceiling to deliver the immersive, overhead Dolby Atmos® experience.
Features:
- Built-in Elevation Channel for Dolby Atmos®
- Dual 1" Aluminum Diaphragm Compression Tweeters
- Main Channel: 6.5" Copper Spun Magnetically Shielded IMG Woofers
- Height Channel: 5.25" Copper Spun Magnetically Shielded IMG Woofers
- 90x90 Square Tractrix Horn
- Bass-Reflex via Rear-Firing Tractrix® ports
- Strong, Flexible Removable Magnetic Grille
- Dimensions: 40” x 9.4” x 17.3”
