Atlona AT-HDR-EX-70C-KIT | 4K HDR HDMI Over HDBaseT TX/RX with Control and PoE

ق.ر4,899
Quantity
Delivery options
  • 1 Years warranty
  • Cash On Delivery Available
  • Shippment And Pickup

Specifications

  • Brand: Atlona
  • Bit Rate : 24-bit max
  • Sample Rate: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
VIDEO
  • Chroma Subsampling : 4:4:4, 4:2:2, 4:2:0
  • Color Depth : 8-bit, 10-bit, 12-bit
  • Color Space : YUV, RGB
  • HDR : 4K HDR10 @ 60Hz and Dolby® Vision™ @ 30Hz
AUDIO
  • Formats : PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby® Digital, DTS 5.1, Dolby Digital Plus™, Dolby TrueHD, DTS-HD Master Audio™, Dolby Atmos®, DTS:X®
VIDEO
  • VESA : 2560×2048, 2560×1600, 2048×1536, 1920×1200, 1680×1050, 1600×1200, 1600×900, 1440×900, 1400×1050, 1366×768, 1360×768, 1280×1024, 1280×800 1280×768, 1152×768, 1024×768, 800×600, 640×480
VIDEO
  • UHD/HD/SD : 4096×2160@24/25/30/50/60Hz, 3840×2160@24/25/30/50/60Hz, 2048x1080p, 1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i

HDBaseT Extender for 4K and HDR



Supports HDR and 4K/60 4:4:4 video content.

The HDR-EX-70C-KIT is cost-effective and ideal for applications requiring the latest as well as emerging 4K/UHD and HDR sources and displays. It supports 4K HDR10 @ 60 Hz and Dolby Vision @ 30 Hz.

An innovative yet practical solution for 4K HDR over HDBaseT.

HDR and 4K/60 4:4:4 video content require data rates exceeding 10 Gbps and up to 18 Gbps – a significant challenge for extending signals over HDBaseT. The HDR-EX-70C-KIT provides the answer with visually lossless video compression technology that applies extremely light compression with no latency. This enables transmission of HDR and 4K/60 4:4:4 over a single category cable while ensuring very high, pristine image quality.

Learn More

The Atlona AT-HDR-EX-70C-KIT is an HDBaseT transmitter/receiver kit for high dynamic range (HDR) formats. Part of the comprehensive family of Atlona 4K HDR integration products, the kit is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. The HDR-EX-70C-KIT provides transmission of HDMI, plus IR and RS-232 control pass-through up to 230 feet (70 meters) for 1080p video, and up to 130 feet (40 meters) for 4K HDR over CAT6a/7 cable. This extender kit features visually lossless compression with no latency to enable HDR and 4K/60 4:4:4 video signal extension over HDBaseT. For additional integration convenience, the transmitter remotely powers the receiver through Power over Ethernet (PoE). The HDR-EX-70C-KIT delivers a cost-effective solution for HDMI and control signal extension and includes surface mounting hardware for discreet installation.

The HDR-EX-70C-KIT is ideal for residential and commercial applications with the latest as well as emerging 4K/UHD and HDR sources and displays.

Applications

  • Residential installations – The HDR-EX-70C-KIT is designed for AV systems with the latest UHD and HDR sources such as Ultra HD Blu-ray players, plus compatible televisions and projectors.
  • TV showrooms – The HDR-EX-70C-KIT can be used for reliable content distribution to televisions, to properly demonstrate the quality and appeal of 4K and HDR programming.
  • Professional AV applications – Atlona 4K HDR products are ideal for full-motion, highly detailed 4K graphics presentations for visualization, 3D renderings, simulations, and more.




FEATURES

4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats

  • Ideal for new and emerging 4K/UHD and HDR-capable sources and displays
  • Compatible with 4K HDR10 @ 60 Hz and Dolby® Vision™ @ 30 Hz

HDCP 2.2 compliant

  • Adheres to latest specification for High-bandwidth Digital Content Protection
  • Allows protected content stream to pass between authenticated devices

HDBaseT extender kit for HDMI, power, and control up to 230 feet (70 meters)

  • Extends HDMI up to 230 feet (70 meters) @ 1080p and 130 feet (40 meters) @ 4K HDR using CAT6a/7 cable*
  • Uses easy-to-integrate category cable for low-cost, reliable system installation
  • * To achieve optimal HDBaseT performance, CAT6a or CAT7 shielded twisted pair cable is highly recommended.

Receiver powered by transmitter via PoE (Power over Ethernet)

  • Power for the receiver is supplied by the transmitter over HDBaseT
  • Allows convenient receiver installation at a display or projector without the need for local AC power

Extends RS-232, IR, and CEC control signals over HDBaseT

  • Bidirectional extension of RS-232 and IR control signals
  • Eliminates multiple cables runs between source, control system, and display

Visually lossless compression

  • Enables HDBaseT transmission of HDMI up to 18 Gbps using extremely light video compression with no latency
  • Innovative signal extension solution delivers very high, pristine image quality

Multi-channel audio compliant

  • Supports PCM, Dolby Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS® Digital Surround™, DTS-HD Master Audio™, and DTS:X®
  • Allows any multi-channel audio stream to be used within a professional audio system

5 Volt and Hot Plug Detect emulation for HDMI source and sink communications

  • Restores +5 volt and HPD signals lost due to issues at the source or display, as well as faulty or long cables
  • Enables the essential signal handshaking necessary for the source to deliver video content

Provides HDMI signal regeneration for source devices

  • Allows legacy HDMI sources such as cable television set-top boxes to be used in newer systems
  • Addresses the lack of support for the HDMI clock stretching protocol required in HDBaseT extenders

HDBaseT link status testing

  • Free software utility available for testing integrity of the HDBaseT cable link between the transmitter and the receiver
  • Provides real-time link status, plus detailed HDBaseT and HDMI signal information
  • Quick, easy verification or troubleshooting of RJ-45 termination or twisted pair cable quality
  • A test button and LED also available on the transmitter for checking HDBaseT link integrity

Power chaining

  • The included power supply provides ample power for up to three Atlona HDBaseT extenders
  • Four Atlona HDBaseT extenders can be powered using the optional AT-PS-483125-C power supply
  • Reduces clutter from multiple power supplies in equipment racks

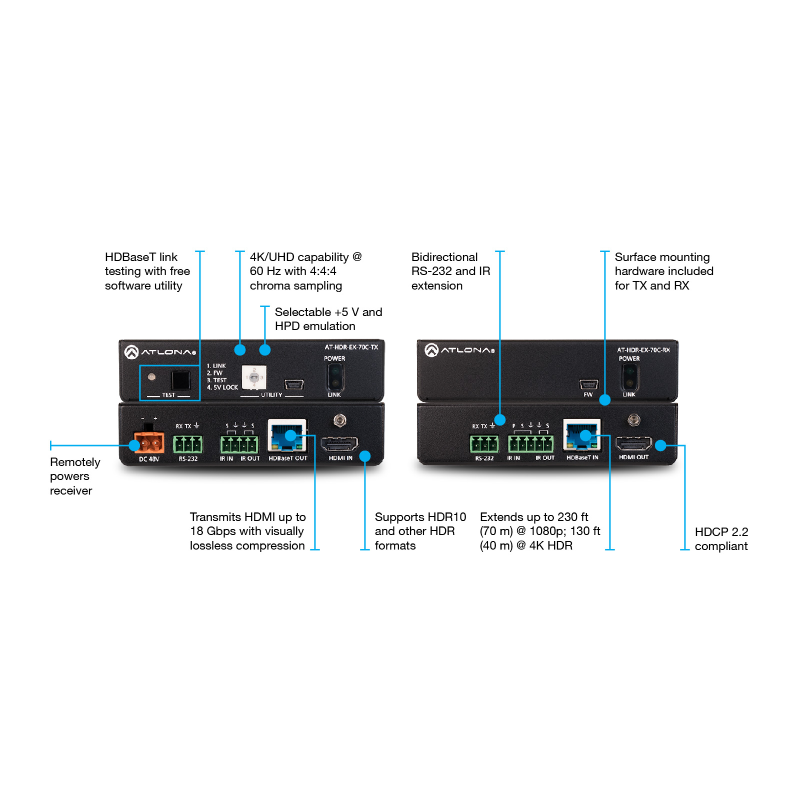

Rear panel I/O connectors

  • Placement of ports on rear panel simplifies wire management
  • Saves installation time and eliminates clutter

Field-updatable firmware

  • The front-panel USB port provides an easy means for device updates
  • Ensures long-term system return on investment

Front panel Power and Link status LEDs

  • LED indicators to provide power and HDBaseT link status information
  • Provides easy setup and troubleshooting

Low-profile, 1 inch (25 mm) high quarter rack-width enclosure

  • Easy installation into racks and confined spaces
  • Keeps devices out-of-sight when placed in public spaces

Included accessories

  • Installation guide, surface mounting brackets, IR emitter, and external universal power supply.
